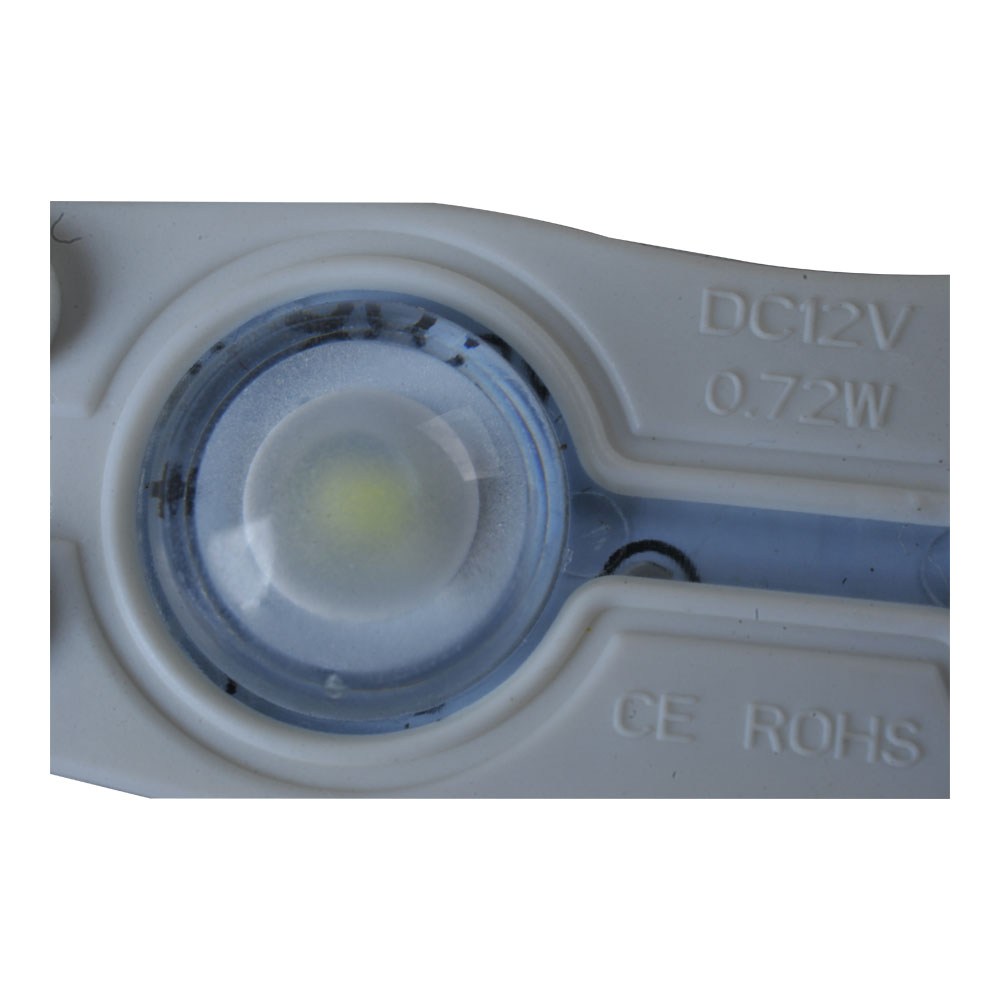

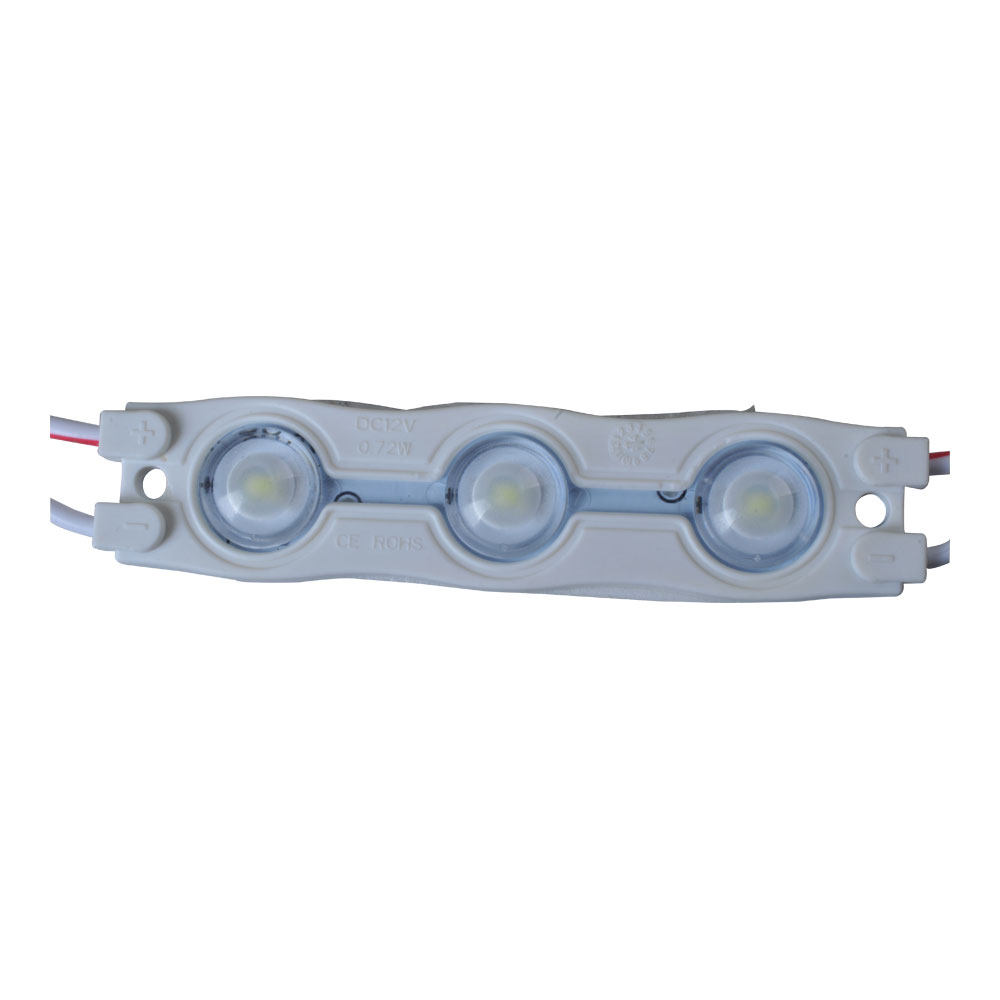

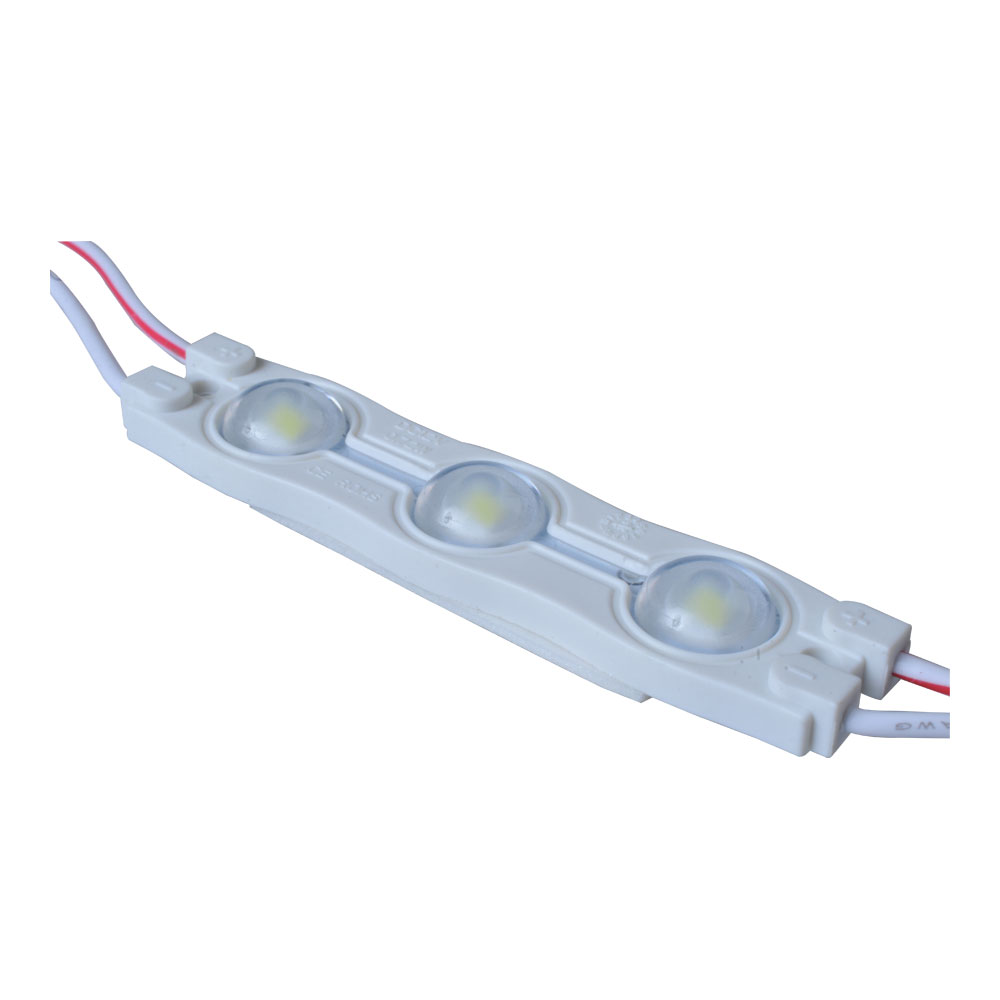

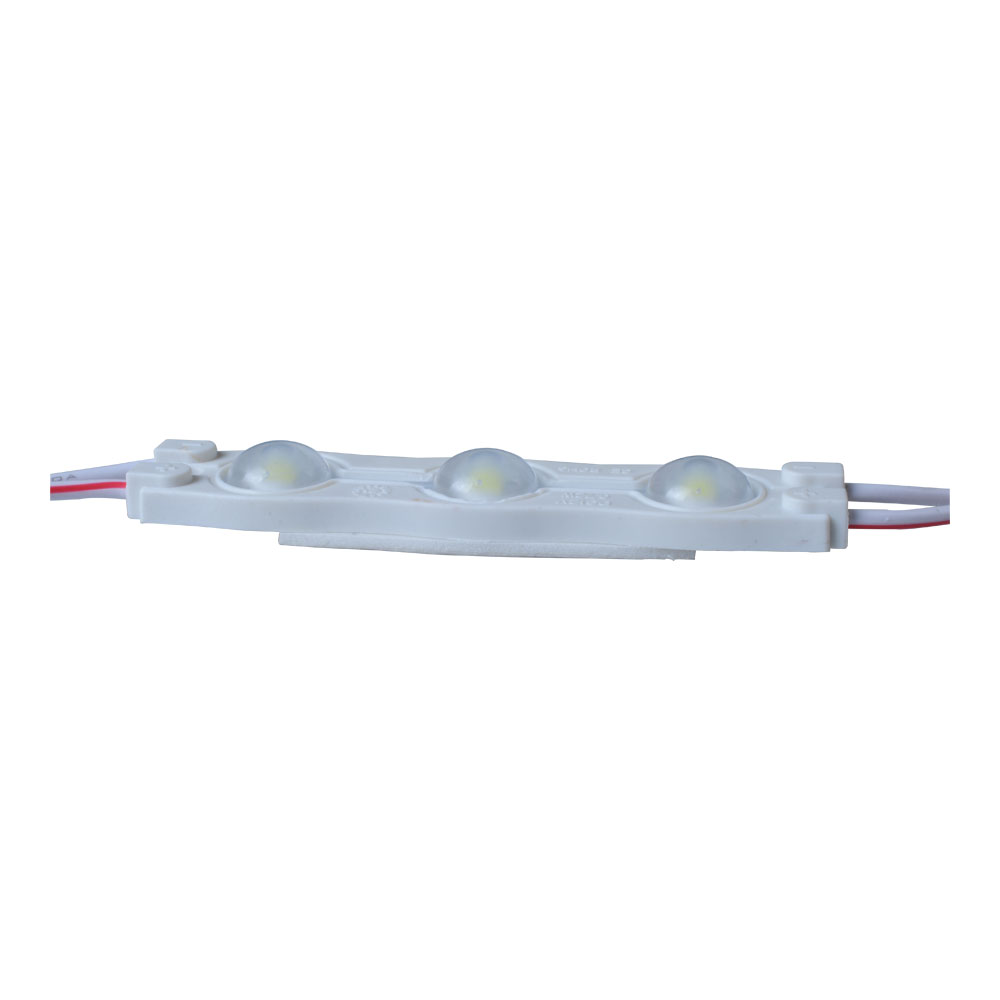

SMD 2835 Waterproof LED Module (3 LED Chips with Optical Lens, 0.72W, L70 x W16 x H7mm)designed for Internal Illumination Of Signs

Item Code: LEDM-GKL-MFX148A

Availability:

  • White
  • Red
  • Blue
  • Green
Unit Price: $0.47/pc

Apply to See Distributor Price

Quantity:
pc(s) Total Cost:  $47.00
Inquire Now

Buyer Protection

Related products
SMD 2835 Waterproof LED Module (3 LED Chips with Optical Lens, 0.72W, L70 x W16 x H7mm)designed for Internal Illumination Of Signs
Buy It Now

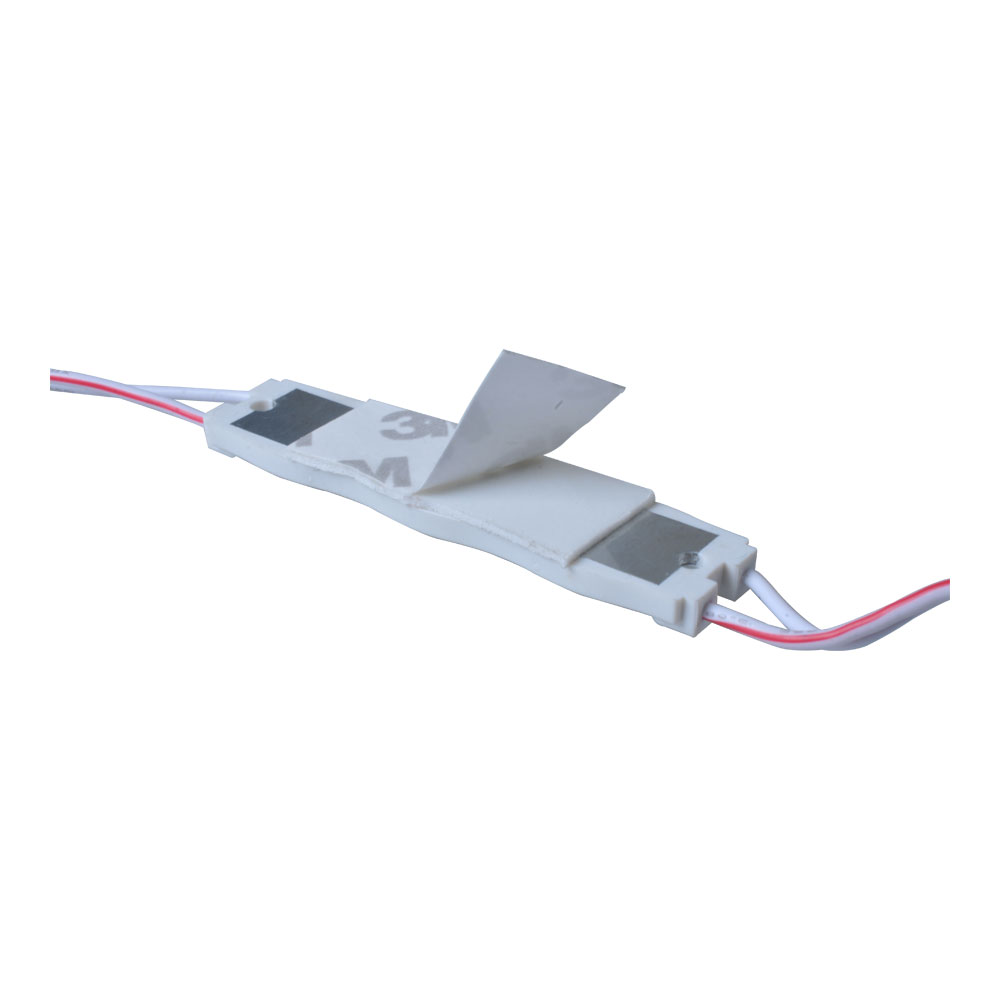

Description:Target at the middle and end light sources used on identification;adopting the chips manufactured by famous big factories, high brightness,large emitting angle,low thermal resistance, and low light decay,high uniformity of the emitting color,using pure thick copper wire and designing by low thermal resistance to ensure the steady current and lower the heat; reasonable circuit design, convenient to install and wiring regulation, life span over 30000 hours, power supply at constant 12V DC; safety, energy saving and eco-friendly. High power 2835SMD LEDs 3 LED Chips with Optical Lens, 170 Degree, beam pattern, Double sided adhesive foam tape, 3 inch wires between each module.

Specification:

Basic parameters
Color

White, Red, Blue, Green

LED type 2835
LED Qty

3PCS

Dimension (70 x 16 x7mm)

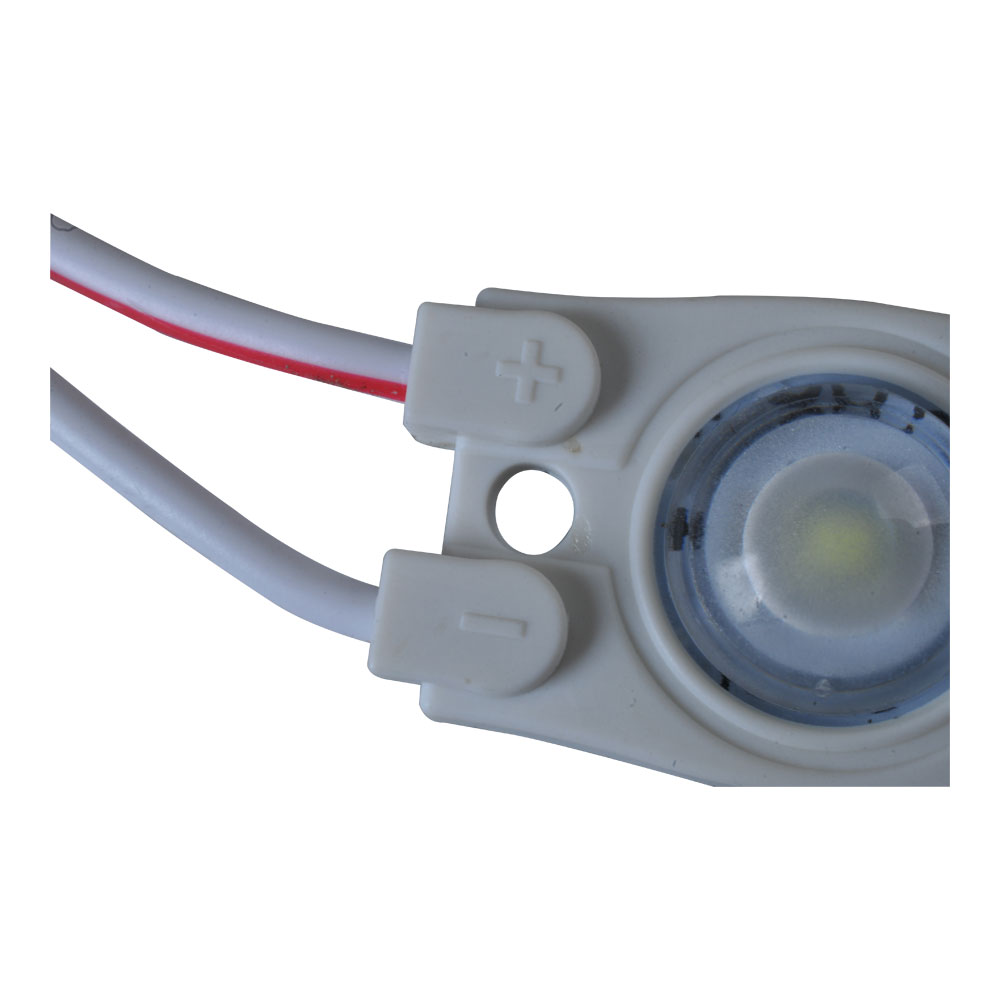

Module interface 2 x 3.2 " (2 x80mm) RVleads Interface definition Gray anode, white cathode

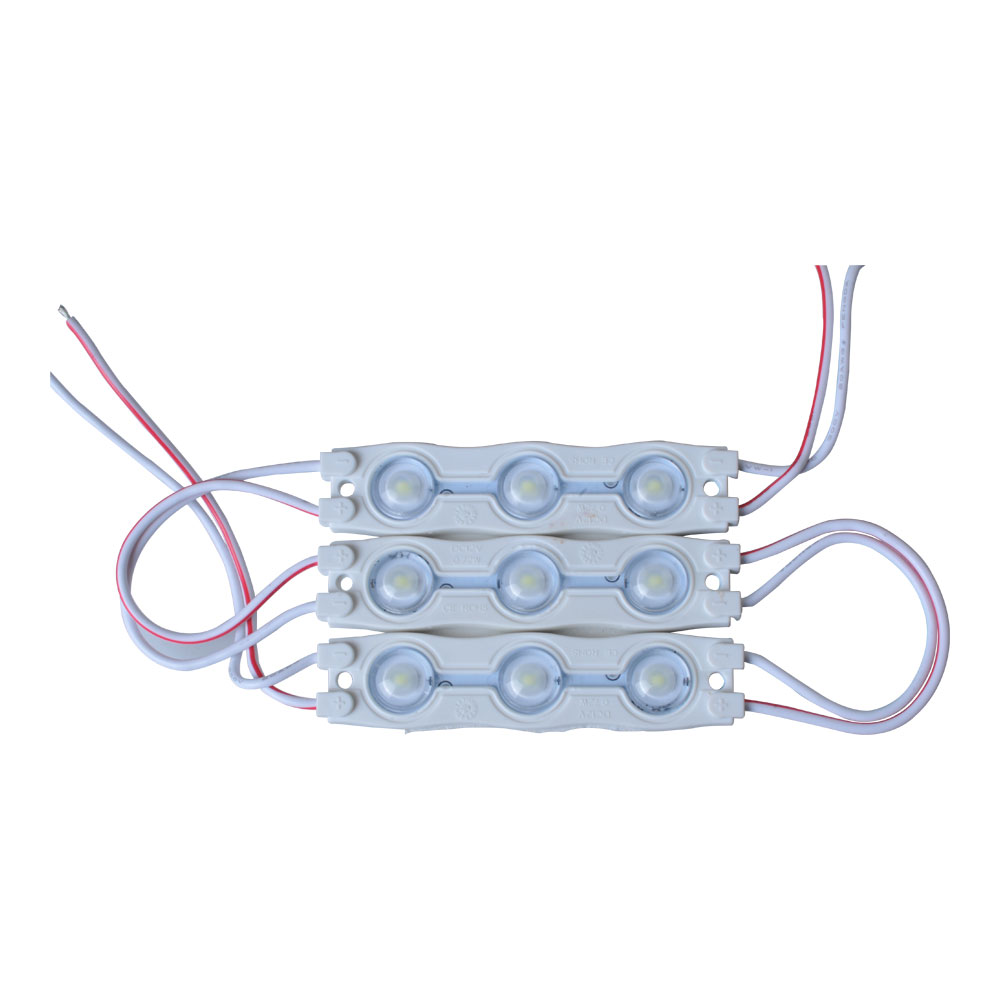

Cluster Qty 20pcs Module space between 80mm
Weight 0.4oz (10g)±5% Lifespan MTBF>30000hours
Environment parameters
Working temperature -40°C∼60°C
Defend grade IP65 competely satisfies the outdoor lighting standard
Electronic specifications
Working input voltage D12V±5% Max power 0.72 W
Driving mode Invariable voltage! (Insure every LED working under the invariable voltage)
Lighting capability
Luminous flux 65 lm
Beam angle 170°




  SMD3528 SMD2835 SMD5050
Luminous Flux 7 - 8LM 20 -22LM 21 -24LM
Power 0.1W 0.22W 0.24W
Price Low Middle High
Difference
Power Saving. Economical.

Super Brightness. Low Lumens Depreciation. High Performance / Price Ratio (Economical / Super Brightness / Long Lifespan)
Usage You need spend about $22 to make this lighting channel letter, cheap and power saving, but has low brightness.

You need spend about $27 to make this lighting channel letter, power saving and with high brightness.

You need spend about $36 to make this lighting channel letter, with super high brightness.

About luminouse efficiency, comppare with SMD3528,SMD5050 and SMD2835. The SMD3528 is low, SMD5050 in the middle and the SMD2835 is high. But for the price, SMD2835 in the middle, SMD3528 is low and the SMD5050 is high.

1. LED module used for light box making:


2. LED module used for Sign Cabinets:

3. LED module used for signage making:

4. LED module used for channel leter:




5. LED module used for Edge Lit Signs:



Quality Report:

 We free ship only to the 48 contiguous states.
For Hawaii, Alaska, Guahan or Puerto Ricoa Customers, an extra freight is required.

Free shipping on orders over $79.
$6 shipping charge on orders under $79.

This product has no Specifications

Package:

Module RoHs:

Module CE:
