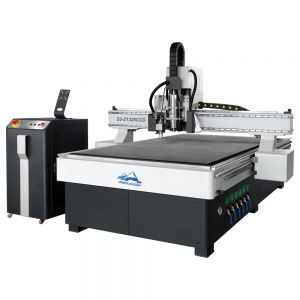

51" x 98" (1300mm x 2500mm) CNC Router Machine with CCD camera, PVC / KT cutting master
This cnc contour cutting system machine is high precision and low noise, highly reliable and efficient.it is a regular CNC router and a CCD cutting system.
It is a good working mate for UV flatbed printing system, advertising making, garment field KT board, PVC board (within 6mm / 0.236inches), leather and other soft material cutting good helper.
Applications:
Sign & graphics, digital printing, packaging, automotive, aerospace, HVAC
Materials Available:
Solar panel, polycarbonate panel, cardboard, graphic board, vinyl, leather, carpet, carbon composite, cork, expandable PVC, foam, fabric, gator foam, corrugated plastic, paper, closed cell foam, HVAC dust liner, rubber-silicon, rubber mat.
QOMOLANGMA BRAND STORY:
Feature:
. Digital Tangential Cutting Bed.
. Innovative tangential cutting system that uses a camera to capture and position the material。
. Ideal for finishing prints, best combination of printing and cutting industries。
. Low cost and high performance, ideal for low budget customers。
. Full cast iron body, imported linear guides, rack & gear scientifically installed and adjusted by experienced engineers.
1. Industrial steel pipe frame, with stable moving, low noise and high precision.
2. Contour is output by program automatically, which saves much time and work for users.
3. Japanese Shimpo planetary reducer, imported linear rails, ensures the high precision.
4. High power AC servo motor, ensure high precision under high speed.
5. The machine body of the engraving machine and the vibrating knife are integrated and applicable for the first time in China. So as to meet the customers demand for maximum speed and precision.
6. Designed by professional team, advanced structure, simple and generous exterior.
Specification:
| Model | CNCR-N1-Z1325CCD-US |
| Table Size | 1440mm x 2630mm (56.7in x 103.5in) |
| Working Size | 1300mm x 2500mm x 200mm (51.2in x 98.4in x 78.74in) |
| Max. Material Height | 200mm (78.74in) |
| Spindle Power | Water Cooling 3.0kw / 4HP |
| Speed RPM | 0-24000rpm |
| Mark Recognition | CCD Camera |
| Driver | Leadshine AC Servo |
| Control System | LEYU control system |
| Tool Diameter | Ø3.175, Ø4, Ø6, Ø12.7 |
| Mechanical Structure | Square Steel Pipe |
| Transmission | Synchronous Belt Drive; Ball Screw for Z; Rack & Pinion for X, Y |
| Guide Ways | Linear Guide Ways |
| Repositioning Accuracy | <0.03mm / 300mm (11.8inches) |
| MAX. Engraving Speed | 20m / min |
| Traverlling Speed | 60m / min |
| Table Top | PVC Vacuum Table + Blanket |
| File Transfer | USB |
| File Format | G Code / HPGL / DXP |
| Software | Ucancam V10 |
| Power Supply |
CNC router machine: AC220V single phase, 50hz - 60Hz, 15A |
| External Form Size | 2050mm x 3060mm x 1650mm (80.7in x 120in x 65in) |
| Packing Size | 3150mm x 2200mm x 1850mm (122in x 82.7in x 67in) |
| Net/Gross Weight | 1000KG (2200ibs) / 1300KG (2860ibs) |
| Optional Models | N1-1313, N1-1318, N1-1325, And N1-1530 |
| Linear Square Guide | 20MM linear square guide with double bearings, an ultra-heavy type that achieves a deep grooved raceway with its diameter more approximate to the ball diameter and has high rigidity, vibration and shock resistance, and damping characteristics, which are required for machine tools. |
Details Pictures:
Linear Square Guide: 20MM linear square guide with double bearings, an ultra-heavy type that achieves a deep grooved raceway with its diameter more approximate to the ball diameter and has high rigidity, vibration and shock resistance, and damping characteristics, which are required for machine tools.
| Specification | |
| Model | CNCR-S2-1325CCD-US |
| Table Size | 1440mm x 2630mm (56.7in x 103.5in) |
| Working Size | 1300mm x 2500mm x 200mm (51.2in x 98.4in x 78.74in) |
| Max. Material Height | 200mm (78.74in) |
| Spindle Power | Water Cooling 3.0kw / 4HP |
| Speed RPM | 0-24000rpm |
| Mark Recognition | CCD Camera |
| Driver | Leadshine AC Servo |
| Control System | LEYU control system |
| Tool Diameter | Ø3.175, Ø4, Ø6, Ø12.7 |
| Mechanical Structure | Square Steel Pipe |
| Transmission | Synchronous Belt Drive; Ball Screw for Z; Rack & Pinion for X, Y |
| Guide Ways | Linear Guide Ways |
| Repositioning Accuracy | <0.03mm / 300mm (11.8inches) |
| MAX. Engraving Speed | 20m / min |
| Traverlling Speed | 60m / min |
| Table Top | PVC Vacuum Table + Blanket |
| File Transfer | USB |
| File Format | G Code / HPGL / DXP |
| Software | Ucancam V10 |
| Power Supply |
CNC router machine: AC220V single phase, 50hz - 60Hz, 15A |
| External Form Size | 2050mm x 3060mm x 1650mm (80.7in x 120in x 65in) |
| Packing Size | 3150mm x 2200mm x 1850mm (122in x 82.7in x 67in) |
| Net/Gross Weight | 1000KG (2200ibs) / 1300KG (2860ibs) |
| Optional Models | N1-1313, N1-1318, N1-1325, And N1-1530 |
| Linear Square Guide | 20MM linear square guide with double bearings, an ultra-heavy type that achieves a deep grooved raceway with its diameter more approximate to the ball diameter and has high rigidity, vibration and shock resistance, and damping characteristics, which are required for machine tools. |
There are total one box.
| External Form Size | 2050mm x 3060mm x 1650mm (80.7in x 120in x 65in) |
| Packing Size | 3150mm x 2200mm x 1850mm (122in x 82.7in x 67in) |
| Net/Gross Weight | 1000KG (2200ibs) / 1300KG (2860ibs) |
Package:
