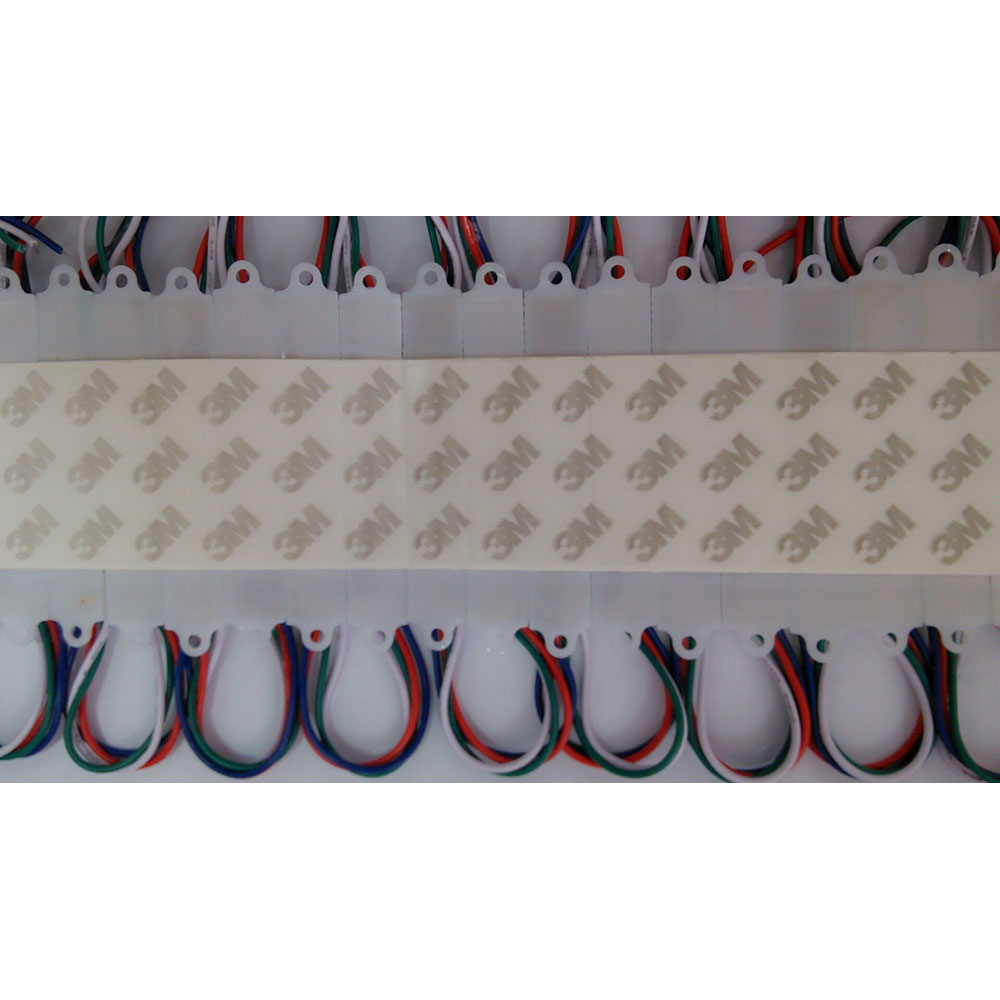

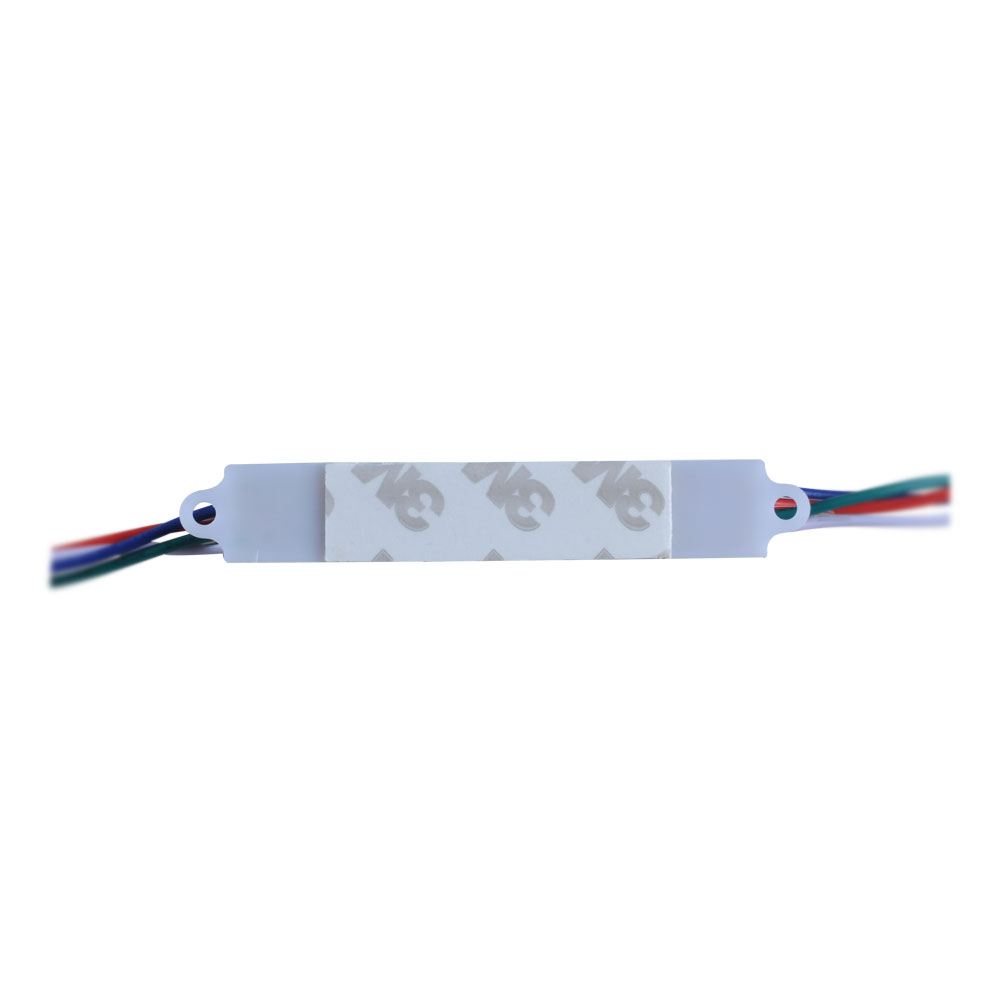

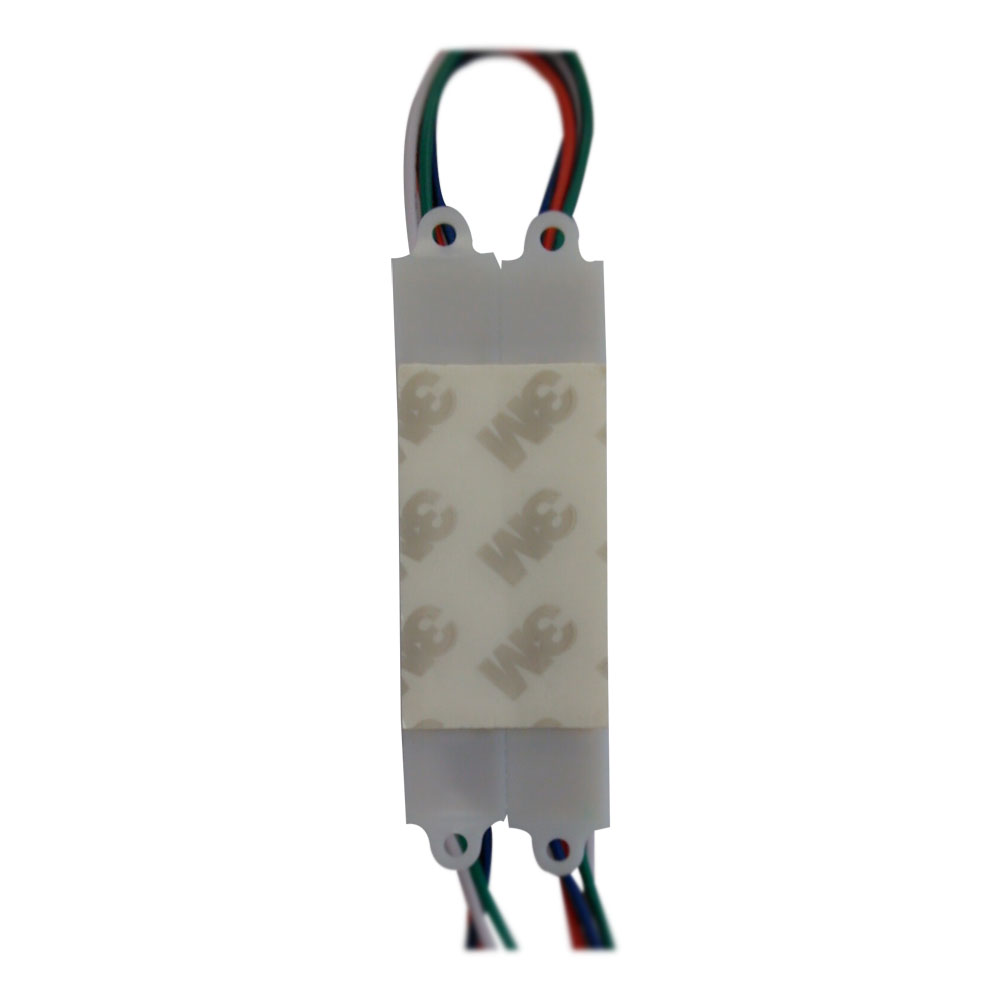

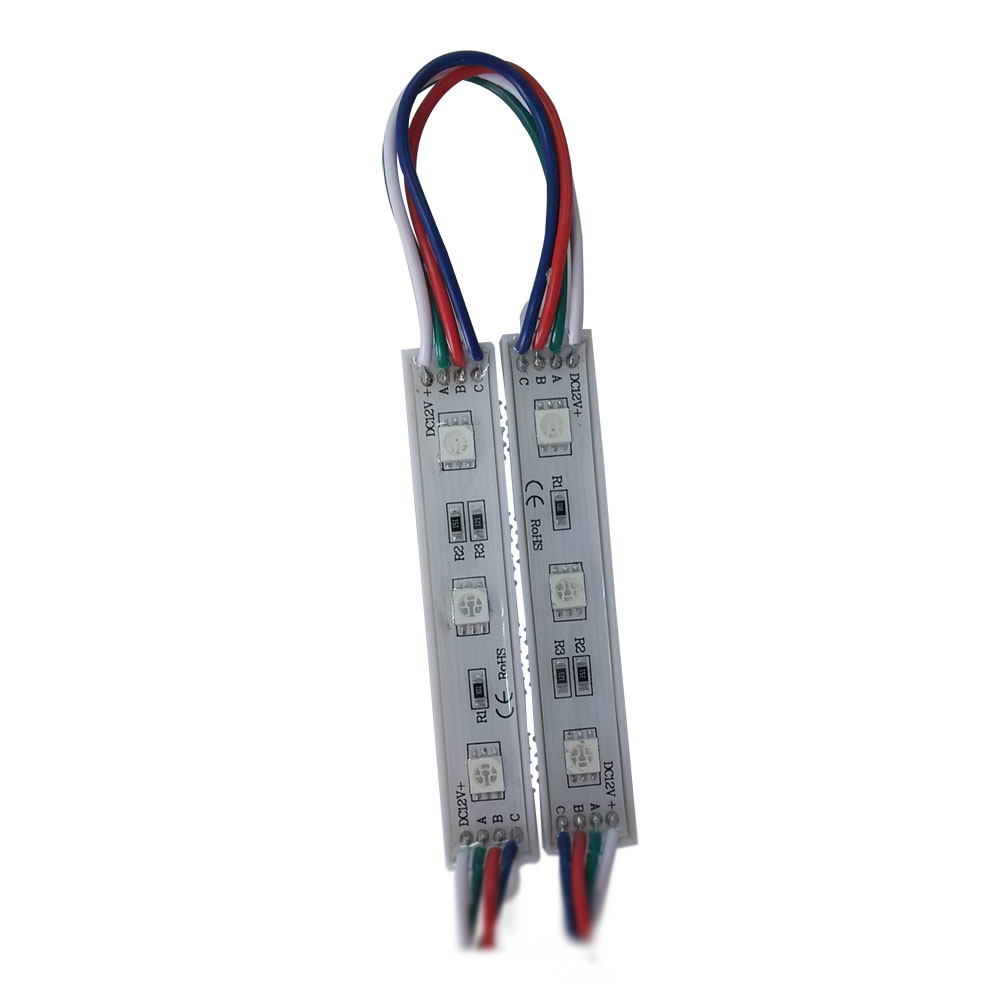

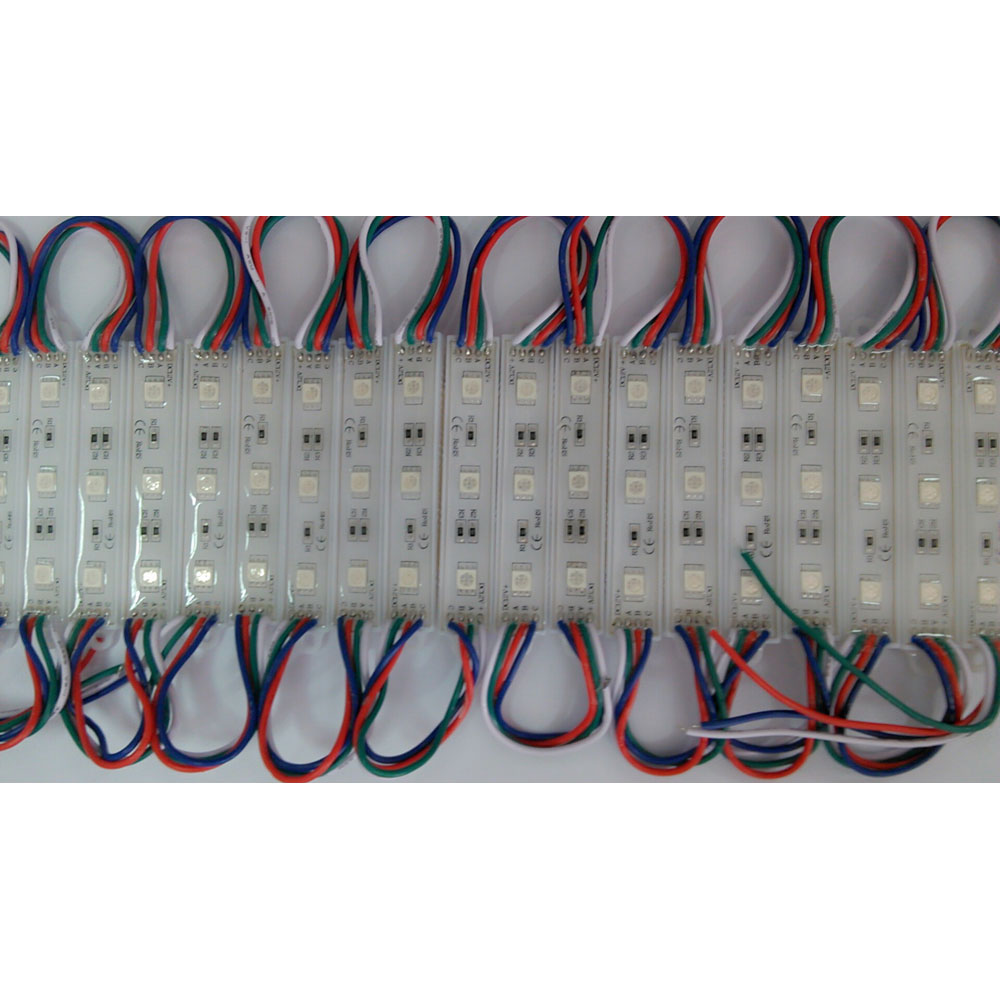

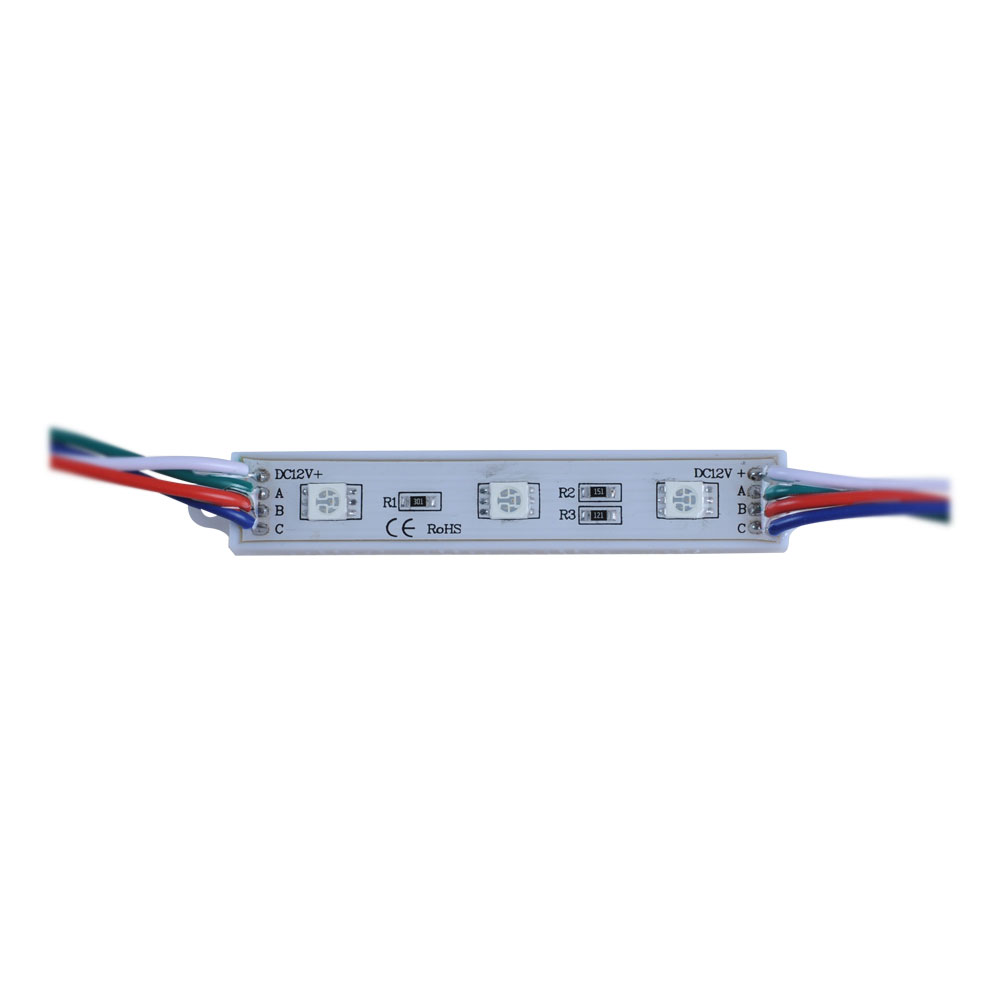

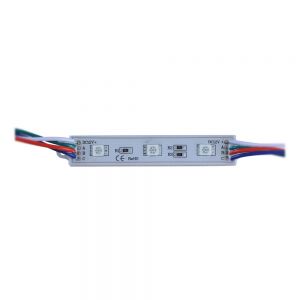

Weatherproof RGB LED module string, it is widely used for advertisement and sign board. High power 5050SMD RGB LEDs bringing us 7 colors changes. Narrow injection molding PVC design has 2 mounting screw holes and included double sided adhesive foam tape. 3-7/8 inch wires between each modules. 12VDC operation.
| Basic parameters | |||
| Color |
RGB |
LED type | 5050 SMD |
| LED Qty |
3PCS |
Dimension | 3" x 0.5" x 0.2" (74 x 12 x 5mm) |
| Module interface | Yellow/Red/Green/Blue 0.2" x 0.02" (4 x 0.5mm) 0.1" x 2.4" (2 x 60mm)RVleads |
Interface definition | Yellow anode, Red/Green/Blue cathode |
| Cluster Qty | 20pcs | Module space between | 2.4" (60mm)±5% |
| Weight | 0.5oz (15g)±5% | Lifespan | MTBF>50000hours |
| Environment parameters | |||
| Working temperature | -40°C∼60°C | ||
| Defend grade | IP65 competely satisfies the outdoorlighting standard | ||
| Electronic specifications | |||
| Working input voltage | D12V±5% | Max power | 0.72 W |
| Driving mode | Invariable Voltage! (Insure every LED working under the invariable voltage) | ||
| Lighting capability | |||
| Luminous flux | 1.9floz (54lm) | ||
| Beam angle | >110° | ||

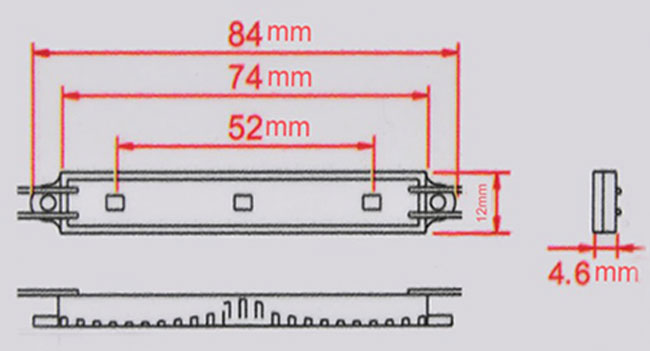

Three Space Dimensions:

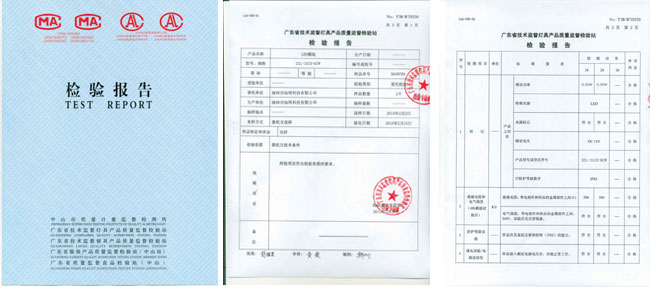

Quality Report:
We free ship only to the 48 contiguous states.
For Hawaii, Alaska, Guahan or Puerto Ricoa Customers, an extra freight is required.
Free shipping on orders over $79.
$6 shipping charge on orders under $79.
| Basic parameters | |||
| Color |
RGB |
LED type | 5050 SMD |
| LED Qty |
3PCS |
Dimension | 3" x 0.5" x 0.2" (74 x 12 x 5mm) |
| Module interface | Yellow/Red/Green/Blue 0.2" x 0.02" (4 x 0.5mm) 0.1" x 2.4" (2 x 60mm)RVleads |
Interface definition | Yellow anode, Red/Green/Blue cathode |
| Cluster Qty | 20pcs | Module space between | 2.4" (60mm)±5% |
| Weight | 0.5oz (15g)±5% | Lifespan | MTBF>50000hours |
| Environment parameters | |||
| Working temperature | -40°C∼60°C | ||
| Defend grade | IP65 competely satisfies the outdoorlighting standard | ||
| Electronic specifications | |||
| Working input voltage | D12V±5% | Max power | 0.72 W |
| Driving mode | Invariable Voltage! (Insure every LED working under the invariable voltage) | ||
| Lighting capability | |||
| Luminous flux | 1.9floz (54lm) | ||
| Beam angle | >110° | ||

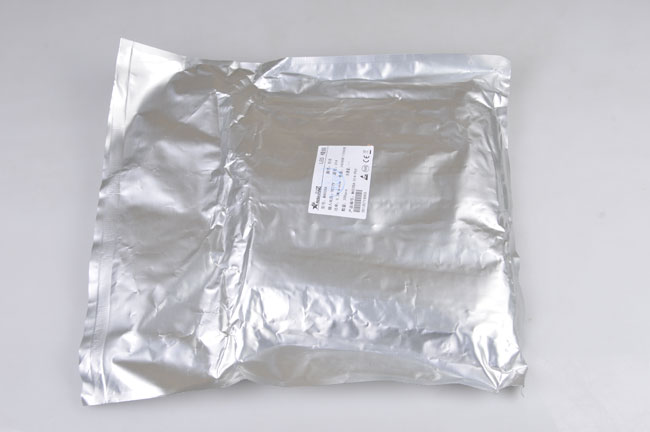

Package:
module CE:
module RoHs:
